Power supply / Sleeve AVA Wireless W9
€99.00
Tax included
82,50 tax excl.
By buying this product you can collect up to
4 points
Wireless sleeve and power supply, ideal for professional use and total freedom of movement.
- Voltage range from 4.2 to 12V
- 1400mAh battery for 4 to 8 hours of autonomy
- Dimensions: Ø 35 x 82 mm
The W9 Wireless cartridge feeder/sleeve from AVA has a diameter of 35 mm.
This revolutionary sleeve acts as both a feeder and a sleeve for your favourite cartridges! The screw thread is universal and fits all machines equipped with a screw-in sleeve.
The start-up function is activated by pressing andholding the button for 1 second to switch the sleeve on. You can pause the process by pressing the button. To switch off the sleeve, hold the button down for 3 seconds.

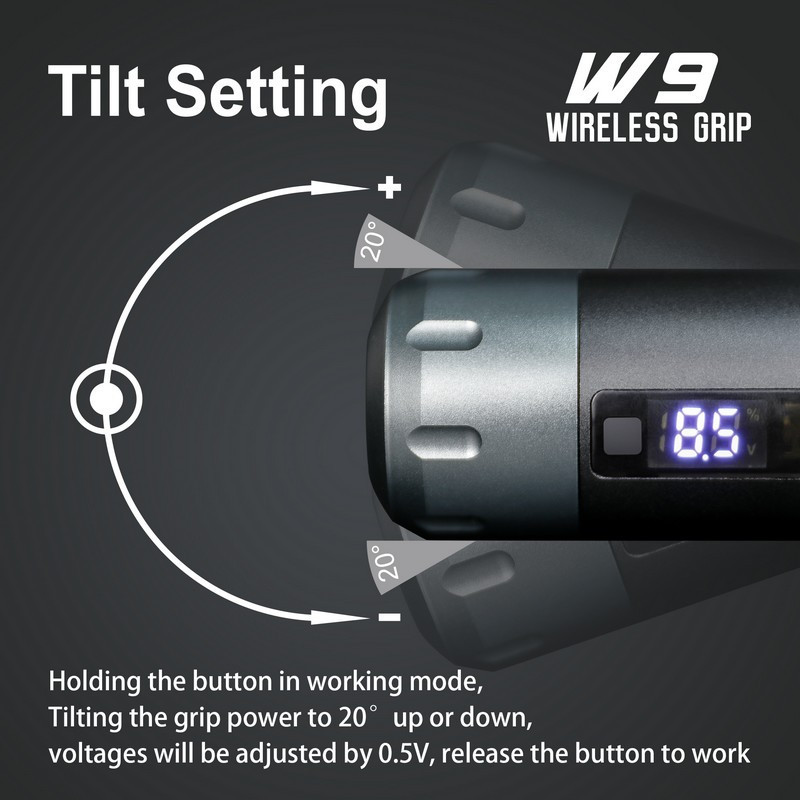

To make adjustments, hold the button down so that the letter "V" appears and then simply tilt the machine upwards at an angle of 20°, the voltage will automatically be increased by 0.5V. To decrease the voltage by 0.5V, simply tilt the machine downwards. Once you've chosen your voltage, simply release the button and press it again to make the V disappear. Your voltage is then recorded!

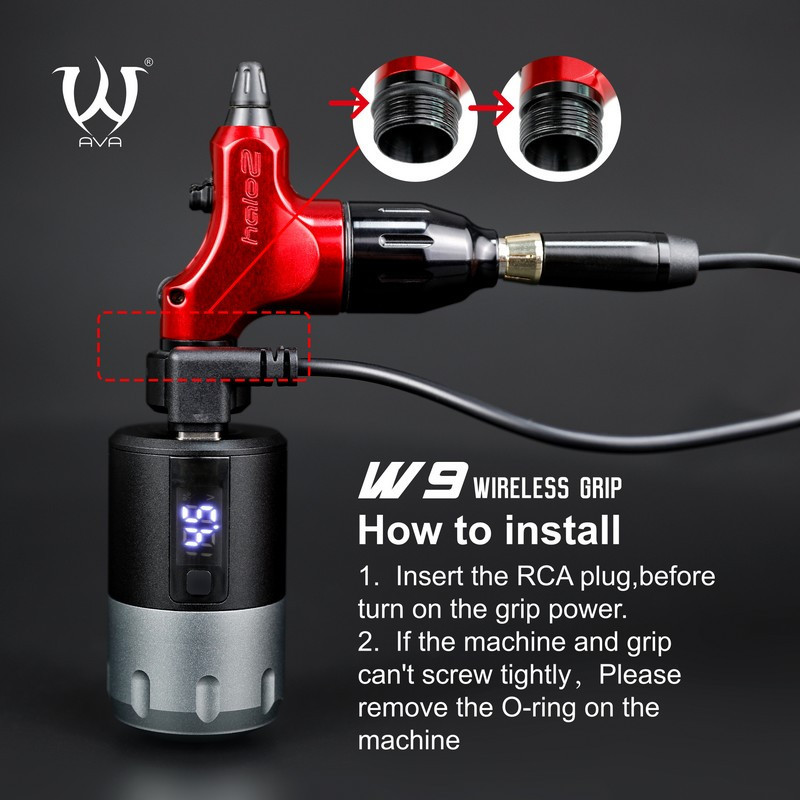

Then simply screw the sleeve onto the machine and insert the RCA plug supplied, then switch on the power supply to the sleeve.
Tip: If the machine and sleeve cannot be screwed together firmly, please remove the O-ring on the machine.
Technical specifications:
Diameter: 35mm
Adjustable sleeve: 0 - 2.5mm
Needle depth adjustable up to 5mm
Operating voltage: 4.5V to 12V DC
Charge input: 5V-1A / Type C cable
Charging time: approx. 3H
Battery capacity: 1400mAh
Working time: approx. 8H

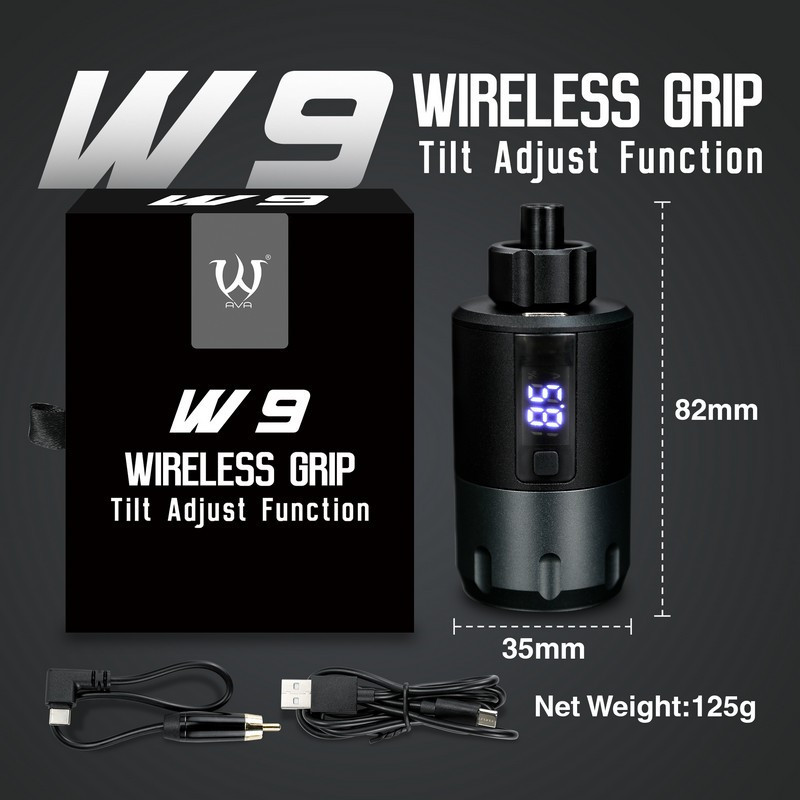

Pack includes: 1 Sleeve/Power supply + 1 RCA cord and USB charging cable
4839
2 Items
Pro Tip
Le système de réglage de voltage par inclinaison est un atout majeur, permettant d'ajuster la puissance en temps réel sans interrompre votre travail. Cette fonctionnalité intuitive facilite les transitions entre les différentes techniques de tatouage, qu'il s'agisse de tracés précis ou d'ombrages profonds. De plus, sa compatibilité avec la majorité des machines rotatives à pas de vis RCA standard assure une intégration sans effort dans votre équipement existant.
Complete your setup
You may also like
AVA MACHINE
FANG Ø30mm screw-in disposable sleeves for cartridges - Box of 10
€24.90
€17.43
14,53 HT
FAQ
The operating voltage range of this sleeve is between 4.2V and 12V. This allows for power adjustment according to needs, whether for precise lines or deep shading.
The built-in battery has a capacity of 1400mAh, providing a battery life of 4 to 8 hours depending on the intensity of use. This makes it a reliable choice for extended sessions without interruption.
The dimensions of the sleeve are 35 mm in diameter and 82 mm in length. Its weight is approximately 125 grams, making it lightweight and easy to handle.
This sleeve is designed to be universal and is compatible with the majority of rotary machines equipped with a standard RCA thread. This allows for easy and quick installation on your machine.
Can't find your answer?
